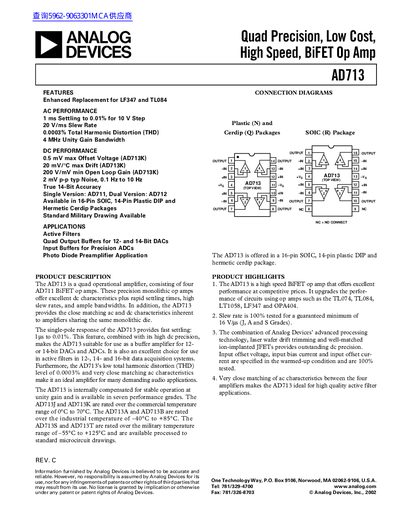

Analog Devices AD713 Quad Operational Amplifier Datasheet

The AD713 is a quad operational amplifier, consisting of four AD711 BiFET op amps. These precision monolithic op amps offer excellent dc characteristics plus rapid settling times, high slew rates, and ample bandwidths. In addition, the AD713 serves as an enhanced replacement for LF347 and TL084.

Brand: Analog Devices
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 14
File format: PDF
File size: 444 KB
Published: 04 June, 2012
Updated: 29 September, 2023
Model: AD713
MD5 checksum: 7F9B75361F96F2CD3C8E91D85D336747
PDF: Analog Devices AD713 Quad Operational Amplifier Datasheet PDF

About this manual

The AD713 is a quad BiFET operational amplifier that integrates four AD711 op‑amps on a single die, delivering low offset voltage, high slew rate, and wide bandwidth.

It is suited for precision buffer applications, active filters, and high‑speed instrumentation, and is available in 14‑Pin Plastic DIP, 14‑Pin Ceramic DIP, 16‑Pin SOIC, and hermetic Cerdip packages.

What's inside

Product Description
Product Highlights
Specifications
Absolute Maximum Ratings
Ordering Guide
Typical Performance Characteristics
Measuring Settling Time
Power Supply Bypassing
High Speed Instrumentation Amplifier Circuit
Filter Applications

Specifications

Slew Rate (typ)	20 V/ms
Supply Voltage Range	±18 V
Operating Temperature Range (J/K grades)	0 °C to 70 °C

Frequently asked questions

What packages are available for the AD713?

It is offered in 14‑Pin Plastic DIP, 14‑Pin Ceramic DIP, 16‑Pin SOIC, and 14‑Pin Cerdip packages.

What is the typical slew rate of the AD713?

The typical slew rate is 20 V/ms.
