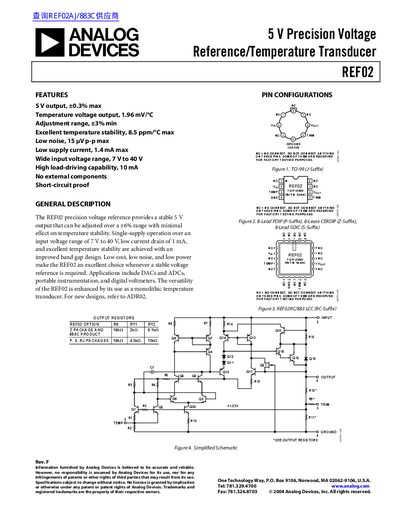

This document describes the features and characteristics of the REF02 precision voltage reference/temperature transducer, including 5V output, temperature voltage output, adjustment range, temperature stability, low noise, and low supply current.
The REFO2 precision voltage reference provides a stable 5 V output that can be adjusted over a +6 % range while maintaining excellent temperature stability. It operates from a single supply of 7 V to 40 V and draws only about 1 mA of supply current, making it suitable for portable instrumentation, DACs, ADCs and digital voltmeters.
The device is available in several package types (TO‑99, PDIP, SOIC, LCC) and includes built‑in ESD protection. Detailed electrical specifications, absolute maximum ratings and typical performance curves are provided in the datasheet.
| Output Voltage | 5.000 V (typ) |
|---|---|
| Output Adjustment Range | ±3 % to ±6 % (trimmed) |
| Output Voltage Noise | 10‑15 µV p‑p (0.1 Hz‑10 Hz) |
| Line Regulation | 0.006 %‑0.010 %/V |
| Load Regulation | 0.005 %‑0.010 %/mA |
| Quiescent Supply Current | 1.0 mA‑1.4 mA (no‑load) |
| Temperature Coefficient (TCVo) | 8.5 ppm/°C (typ) |
| Input Voltage Range | 7 V‑40 V |
| Maximum Input Voltage (absolute rating) | 40 V |
The REFO2 provides a typical output voltage of 5.000 V.
The device achieves an excellent temperature stability of 8.5 ppm/°C max.
The REFO2 draws a low supply current of up to 1.4 mA at no load.
It operates from a single supply voltage of 7 V to 40 V.
