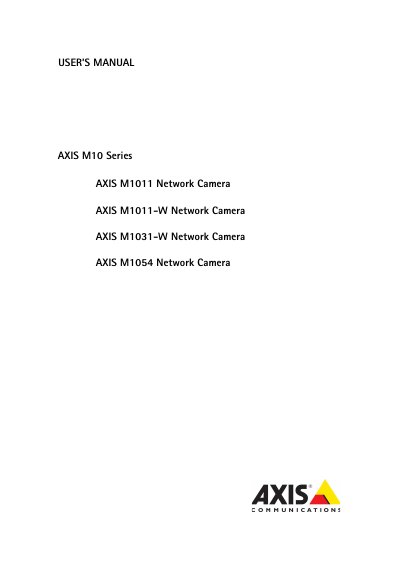

The Axis M10 Series User Manual provides administrators and users with detailed instructions for installing, configuring, and maintaining the AXIS M1011, M1011‑W, M1031‑W, and M1054 network cameras. It includes guidance on accessing the camera via browsers, setting passwords, and using advanced features such as PTZ, audio, and LED indicators.
Technical specifications, system integration details, and a glossary of terms are included to help users understand video compression, network settings, and I/O capabilities. The manual also references online support resources and firmware updates.
| Image sensor | 1/4" Progressive scan RGB CMOS |
|---|---|
| Lens | 4.4 mm, F2.0, fixed iris, fixed focus |
| Horizontal angle of view | 47° (M1011 series) / 84° (M1054) |
| Light sensitivity | 1‑10000 lux (M1011 series) / 1.2‑100000 lux (M1054) |
| Shutter time | 1/5000 s to 1/4 s (M1011 series) / 1/24500 s to 1/6 s (M1054) |
| Video compression | H.264 (Baseline), Motion JPEG, MPEG‑4 Part 2 |
| Resolution | 640×480 to 160×120 (M1011 series) / 1280×800 to 160×90 (M1054) |
| Frame rate | 30 fps for H.264, Motion JPEG, MPEG‑4 |
| Audio compression | AAC LC 8 kHz 32 kbit/s, G.711 PCM 8 kHz 64 kbit/s, G.726 ADPCM 8 kHz 32/24 kbit/s |
| Power connector | Mini DC 5.0‑5.1 V DC, Max 1.5 A |
| I/O terminal connector | 4‑pin: 1 transistor output, 1 digital input, auxiliary power, GND |
| Power over Ethernet (PoE) | Supported on AXIS M1054 |
The cameras support H.264 (Baseline profile), Motion JPEG, and MPEG‑4 Part 2 video compression.
The AXIS M1054 model includes Power over Ethernet (PoE) capability.
