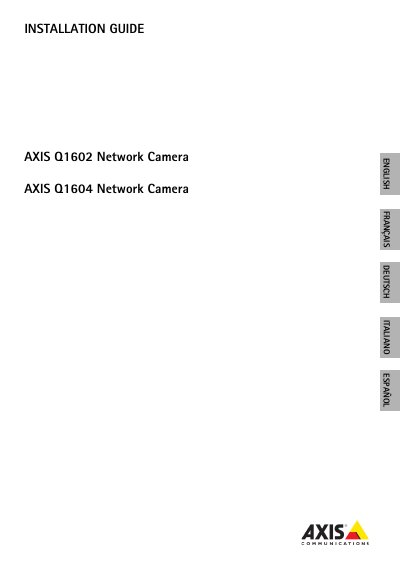

This document contains instructions for installing the AXIS Q1602/Q1604 network camera, including installation steps and considerations
This guide provides step‑by‑step instructions for installing the Axis Q1602 and Q1604 network cameras on a LAN, including hardware mounting, power options, and initial configuration. It also references the full User Manual for advanced features.
Key sections cover package contents, hardware overview, IP address assignment, password setup, and legal/EMC considerations to ensure compliant and reliable operation.
| Model Q1602 dimensions | 46 x 78 x 192 mm |
|---|---|
| Model Q1604 dimensions | 46 x 78 x 192 mm |
| Weight (both models) | 630 g |
| Battery type | 3.0 V CR2032 Lithium |
| Power source | Power over Ethernet (PoE) or external 2‑pin adapter |
| Network connector | RJ45 (PoE) |
If a DHCP server is not present, the camera defaults to 192.168.0.90; you can assign a static address using AXIS IP Utility or AXIS Camera Management.
The internal 3.0 V CR2032 battery lasts about five years; replace it only when a low‑battery log message appears, using the same battery type.
