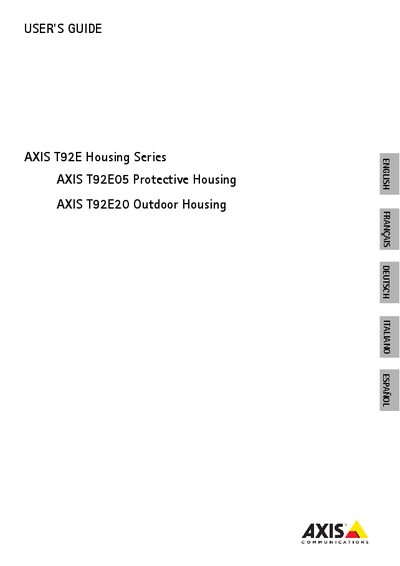

Axis T92E05/T92E20 Housing Series User's Guide

This manual describes the functions of the AXIS T92E series housings, including the protective housing T92E05 and the outdoor housing T92E20.

Brand: AXIS
Category: Other device
Document type: User Manual
Language: English
Pages: 54
File format: PDF
File size: 8 MB
Published: 11 May, 2012
Updated: 30 September, 2023
MD5 checksum: 996682B26C8F4D95F4D05D97A631E630
PDF: Axis T92E05/T92E20 Housing Series User's Guide PDF

About this manual

This guide explains how to install and configure the AXIS T92E05 Protective Housing and AXIS T92E20 Outdoor Housing. It includes a hardware overview, package contents, and step‑by‑step installation procedures.

The document also covers safety precautions, EMC compliance, required accessories such as the M20 cable gland for IP66 rating, and recommended use of shielded (STP) network cables. Legal considerations and support information are provided at the end of the guide.

What's inside

Legal Considerations
Electromagnetic Compatibility (EMC)
Safety
Package contents
Hardware overview
Installation steps
Installing the camera
Support

Specifications

IP rating	IP66 (requires M20 cable gland)
Camera screw torque	2 Nm
Network cable length	5 m (16 ft)
Cable type	Shielded network cable (STP)

Frequently asked questions

What type of network cable should be used with the housing?

A shielded network cable (STP) with a gasket must be used between the camera and the endpoint.

How can the IP66 rating be achieved?

Install the provided plastic M20 cable gland; it is required to meet the IP66 rating.

What torque is required for the camera screw?

The camera screw should be tightened to 2 Nm.
