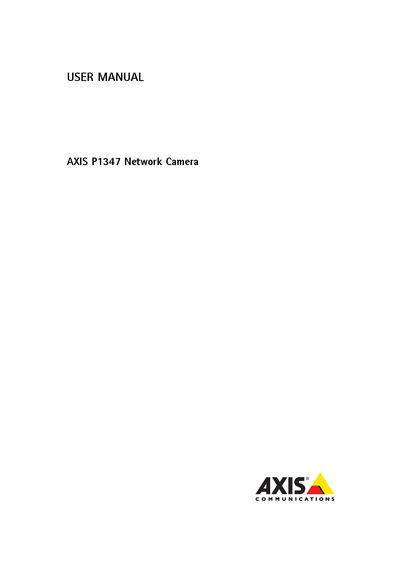

AXIS P1347 Network Camera User Manual
This manual is intended for administrators and users of the Axis P1347 Network Camera (firmware 5.40 and later). It covers hardware overview, connector details, LED indicators, basic setup, video and audio configuration, PTZ functions, detector settings, event handling, system options, and troubleshooting.
The document also includes safety, electromagnetic compatibility, and regulatory information, as well as support resources such as the FAQ database, software updates, and contact details for Axis resellers.
| Power over Ethernet (PoE) | Supported |
|---|---|
| Maximum load for 3.3 V DC Power pin | 50 mA |
| Maximum load for Digital Output pin | 100 mA |
| Maximum input voltage for Digital Input | +40 V DC |
| Audio input connector | 3.5 mm mono microphone or line‑in |
| SD card slot type | Standard or high‑capacity SD card (not included) |
Press and hold the control button for about one second until the status LED flashes green.
A shielded (STP) Ethernet cable is required for outdoor or similar environments.
Disconnect the iris cable, unscrew the standard lens, then attach and screw on the new lens. No restart is needed unless changing iris type.
Enter the camera’s IP address in a web browser to open the web‑based interface.
