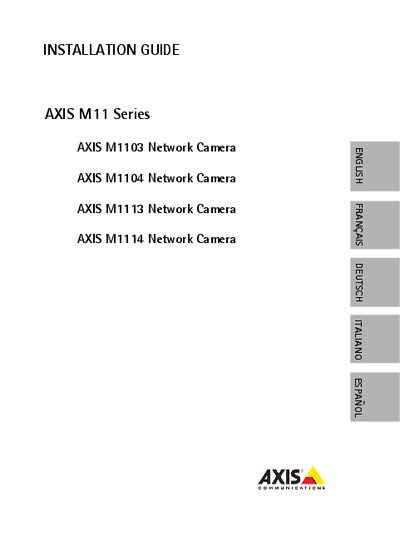

This document provides an installation guide for the AXIS M11 series network cameras, including AXIS M1103, AXIS M1104, AXIS M1113, and AXIS M1114. It also includes legal considerations regarding video and audio surveillance and the need to comply with local laws. The document mentions electromagnetic compatibility (EMC) and the requirement to use shielded (STP) network cables for compliance.
This Installation Guide explains how to set up the Axis M11 Series network cameras, covering legal considerations, hardware overview, and compliance with electromagnetic compatibility standards. It also points to the full User Manual for detailed operation.
The guide walks you through checking package contents, mounting the camera, connecting power and network, assigning an IP address (DHCP or static), and configuring LEDs. Tools such as AXIS IP Utility and AXIS Camera Management are described for single‑camera or large‑scale deployments.
| Dimensions (M1103/M1104, 2.8 mm lens) | 43 × 61 × 107 mm |
|---|---|
| Dimensions (M1113) | 43 × 61 × 140 mm |
| PoE class | Class 1 |
| Default IP address (no DHCP) | 192.168.0.90 |
| Network LED – Green | Steady for 100 Mbit/s connection |
| Network LED – Amber | Steady for 10 Mbit/s connection |
The camera uses 192.168.0.90 as the default IP address.
One H.264 decoder license is included.
Yes, but only in an approved outdoor housing.
A slowly flashing red LED indicates a failed upgrade.
