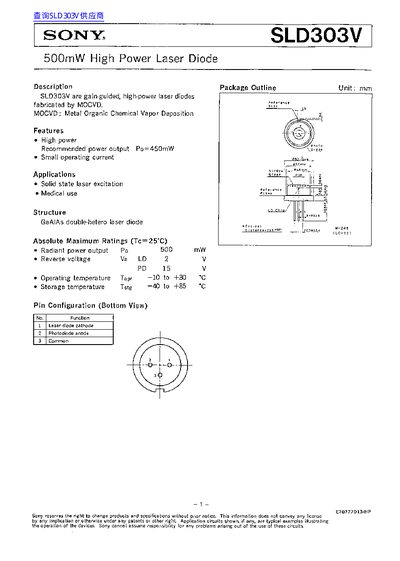

The Sony SLD303V is a gain‑guided, high‑power laser diode fabricated by MOCVD. It delivers up to 500 mW radiant power and is intended for solid‑state laser excitation and medical use. The device features a small operating current, high output power, and a GaAlAs double‑heterostructure.
The datasheet lists absolute maximum ratings, pin configuration, optical and electrical characteristics, and detailed graphs of power, wavelength, and efficiency versus current and temperature. Safety precautions emphasize the need for eye protection and infrared‑blocking goggles when handling the laser beam.
| Maximum radiant power output | 500 mW |
|---|---|
| Recommended power output | 450 mW |
| Threshold current | 450 mA (min) – 600 mA (typ) |
| Operating current (Po=450 mW) | 950 mA – 1500 mA |
| Operating voltage (Po=450 mW) | 1.9 V – 3.0 V |
| Wavelength range (Po=450 mW) | 770 nm – 840 nm |
| Slope efficiency (Po=450 mW) | 0.65 mW/mA – 0.9 mW/mA |
| Radiation angle (perpendicular) | 28° – 40° |
| Operating temperature range | -10 °C to +30 °C |
The recommended output power is 450 mW.
Eye protection such as safety goggles that block infrared rays should always be used.
The device can operate from –10 °C to +30 °C.
