The document describes the features and characteristics of the SLD302V high-power laser diode, including recommended power output and low operating current. This laser diode is suitable for solid-state laser excitation and medical use.

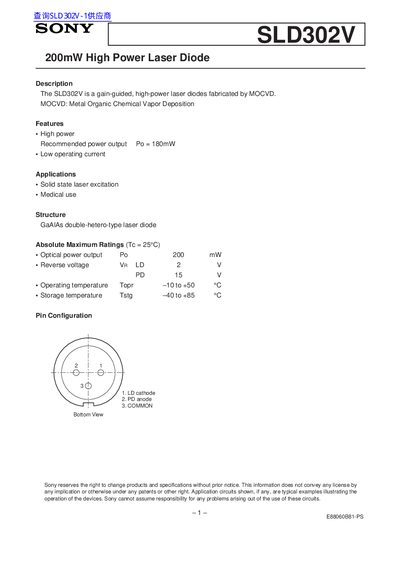

This datasheet describes the Sony SLD302V high‑power laser diode, a gain‑guided GaAlAs double‑hetero‑type device offering up to 200 mW optical output. It lists key features, recommended power output, and typical applications such as solid‑state laser excitation and medical use.
The document includes absolute maximum ratings, pin configuration, detailed electrical and optical characteristics, handling precautions (including required eye protection), representative performance curves, differential efficiency versus temperature, wavelength data at various temperatures, and the package outline with dimensions and codes.
| Maximum optical power output | 200 mW |
|---|---|
| Reverse voltage (V_RLD) | 2 V |
| Operating temperature range | -10 °C to +50 °C |
| Storage temperature range | -40 °C to +85 °C |
The SLD302V can deliver up to 200 mW of optical power.
Eye protection goggles that block infrared rays, IR scopes, IR cameras, and fluorescent plates should be used.
The device operates safely between –10 °C and +50 °C.
