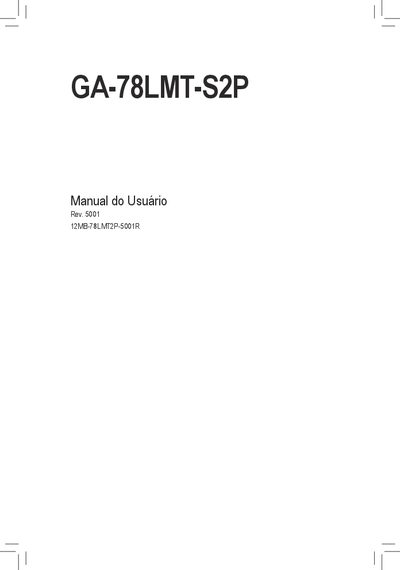

This document is the user manual of GA-78LMT-S2P motherboard from GIGA-BYTE TECHNOLOGY CO. The document contains the specifications and installation instructions of the motherboard.
This manual guides users through installing the Gigabyte GA-78LMT-S2P motherboard, configuring the BIOS, and setting up drivers. It includes safety warnings, hardware layout diagrams, and step‑by‑step procedures.
Technical specifications such as supported CPUs, memory capacity, expansion slots, and connectivity are listed, along with regulatory compliance information and contact details for Gigabyte support. This manual is written in Portuguese.
| CPU socket | AM3+ |
|---|---|
| Supported CPUs | AMD AM3+ Phenom II, Athlon II |
| Chipset | AMD 760G (North Bridge) / AMD SB710 (South Bridge) |
| Memory slots | 2 DDR3 DIMM slots, up to 8 GB total |
| Graphics outputs | 1 D‑Sub port, 1 DVI‑D port (max 1920×1200) |
| Audio codec | Realtek/VIA HD, 2/4/5.1/7.1 channel support |
| LAN | Gigabit Ethernet (Atheros/Realtek) 10/100/1000 Mbit |
| Expansion slots | 1 PCI Express x16, 1 PCI Express x1, 1 PCI slot |
| SATA ports | 6 SATA 3 Gb/s connectors, RAID 0/1/10/JBOD support |
| USB ports | Up to 8 USB 2.0/1.1 ports (4 rear, 4 internal) |
Disconnect the AC power, use an anti‑static wrist strap, avoid touching contacts, ensure the case fits, and keep screws away from circuitry.
It provides up to eight USB 2.0/1.1 ports, four on the rear panel and four via internal connectors.
The board supports up to 8 GB of DDR3 memory across two DIMM slots.
It supports AMD AM3+ processors such as Phenom II and Athlon II.
