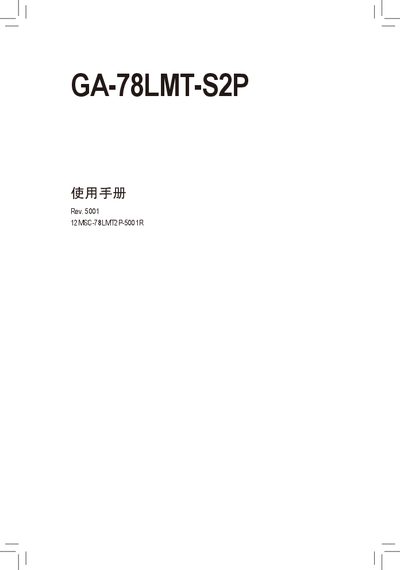

GA-78LMT-S2P user manual, introduces the motherboard's hardware installation, BIOS program settings, driver installation and other contents
This manual covers all steps needed to install and configure the GA-78LMT‑S2P motherboard, including safety precautions, CPU and memory installation, connector and jumper setup, and detailed BIOS configuration. It also includes driver installation instructions and a warranty/servicing section.
The document lists the technical specifications of the board, such as supported CPUs, memory types, expansion slots, storage interfaces, USB ports, and networking features, helping users verify compatibility and plan system builds. This manual is written in Chinese.
| CPU socket | AM3+ (supports AMD AM3+ and AM3 processors) |
|---|---|
| Chipset | AMD 760G northbridge, AMD SB710 southbridge |
| Memory slots | 2 DDR3 DIMM slots, up to 8 GB total |
| Supported memory speed | DDR3 1333+ (O.C.)/1066/800 MHz |
| Storage interfaces | 6 SATA 3Gb/s ports, RAID 0/1/10/JBOD support |
| USB ports | Up to 8 USB 2.0/1.1 ports (4 rear, 4 via internal headers) |
| LAN | 1 Gigabit Ethernet (Atheros/Realtek GbE LAN) |
It uses an AM3+ socket that supports AMD AM3+ and AM3 processors.
The board provides up to eight USB 2.0/1.1 ports—four on the rear panel and four via internal headers.
The motherboard can accommodate up to 8 GB of DDR3 memory across its two slots.
It includes six SATA 3 Gb/s connectors with RAID 0, RAID 1, RAID 10, and JBOD capabilities.
