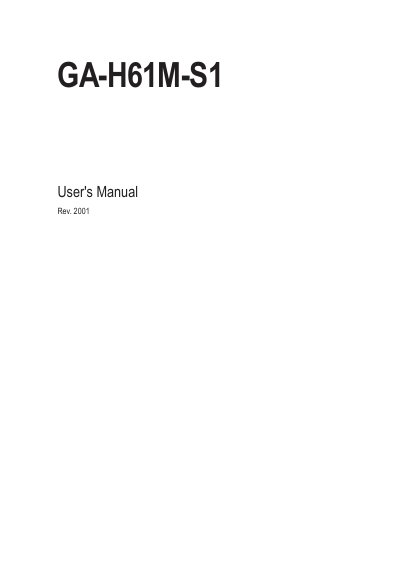

GA-H61M-S1 Motherboard User's Manual, introduces the motherboard model, function, specification, installation method, etc.
The Gigabyte GA-H61M-S1 Motherboard User Manual provides detailed instructions for hardware installation, BIOS configuration, and driver setup. It includes safety precautions, motherboard layout diagrams, and a complete list of specifications.
The manual also offers troubleshooting guidance, regulatory information, and contact details for technical support, ensuring users can safely assemble and operate their system. This manual is written in Chinese.
| CPU Support | Intel Core i7/i5/i3, Pentium, Celeron (LGA1155) |
|---|---|
| Chipset | Intel H61 Express |
| Memory Slots | 2 DDR3 DIMM sockets, up to 16 GB |
| Supported Memory Speed | DDR3 1333/1066/800 MHz |
| Onboard Graphics | 1 x D‑Sub port |
| Audio Codec | Realtek ALC887, 2/4/5.1/7.1‑channel |
| LAN Chip | Realtek RTL8111F (10/100/1000 Mbit) |
| SATA Connectors | 4 × SATA 3 Gb/s |
| USB Ports | Up to 8 × USB 2.0/1.1 (4 rear, 4 internal) |
| Form Factor | Micro ATX, 22.6 cm × 17.4 cm |
It has 2 DDR3 DIMM sockets that support up to 16 GB of system memory.
The board uses a Realtek RTL8111F LAN chip with 10/100/1000 Mbit support.
The motherboard provides up to 8 USB 2.0/1.1 ports—4 on the rear panel and 4 via internal headers.
It is a Micro ATX board measuring 22.6 cm × 17.4 cm.
