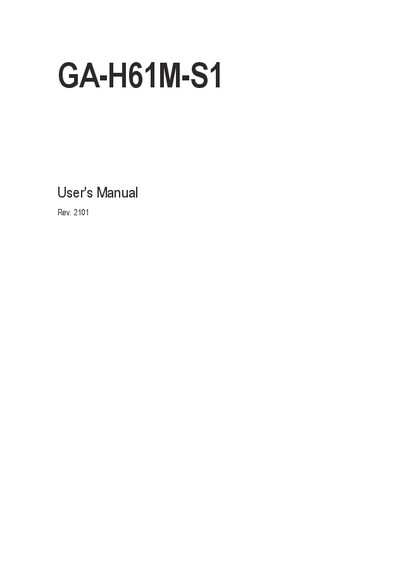

GA-H61M-S1 User's Manual, describes the hardware installation and BIOS setup of the motherboard.
This manual guides users through safe handling, installation, and configuration of the Gigabyte GA-H61M-S1 motherboard. It includes safety precautions, hardware installation procedures, and troubleshooting tips.
The document contains a layout diagram, block diagram, detailed hardware installation steps, BIOS setup guide, driver installation instructions, and regulatory information. It also lists all technical specifications such as CPU support, memory capacity, expansion slots, and connectivity options.
| CPU Support | Intel® Core™ i7, i5, i3, Pentium, Celeron (LGA1155) |
|---|---|
| Chipset | Intel® H61 Express Chipset |
| Audio Codec | Realtek ALC887 HD audio codec |
| LAN | Realtek/Atheros GbE LAN (10/100/1000 Mbit) |
| Expansion Slots | 1× PCI Express x16, 2× PCI Express x1 |
| SATA Connectors | 4× SATA 3 Gb/s ports |
| USB Ports | Up to 8 USB 2.0/1.1 ports |
| Power Connectors | 1× 24‑pin ATX main power connector |
It supports Intel® Core™ i7, i5, i3, Pentium, and Celeron processors in the LGA1155 package.
There are four SATA 3 Gb/s connectors for storage devices.
The motherboard uses the Realtek ALC887 HD audio codec.
