RAFIX 22QR control component range, suitable for mounting hole diameter of 22.3mm according to IEC 60947, maximum 250V/10A, water-jet proof IP65, 2 collar shapes, pushbutton lamps can be replaced from the front, contact blocks can be coupled with actuators, available with screw, cage clamp, quick connect terminals or RJ12 connector.
The RAFIX 22 range offers a modular system of pushbuttons, selector switches, key‑lock switches, emergency‑stop devices and other control components. All parts are designed for a 22.3 mm mounting hole, are water‑jet proof, and meet IP65 protection (IEC 60947). Various terminal styles – screw, cage‑clamp, quick‑connect and RJ‑12 – simplify wiring and reduce assembly time.

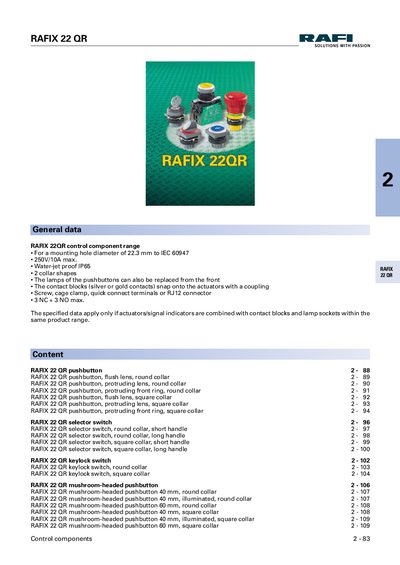

The handbook lists technical data, approved standards, and a full catalogue of accessories such as front rings, lamp sockets, protective covers and insulating housings. Order numbers for each variant are provided, enabling quick selection of the required colour, lens type and mounting configuration.
| Maximum voltage / current | 250 V / 10 A |
|---|---|
| Operating force (single element) | ≈ 5 N |
| Switching life (momentary / latching) | 1 million / 0.5 million operations |
| Operating temperature range | -25 °C to +70 °C |
| Storage temperature range | -40 °C to +80 °C |
The contact blocks are rated for 1 million momentary and 0.5 million latching operations.
