RAFIX 22 FS control component range with a mounting hole diameter of 22.3 mm to IEC 60947. The contact blocks have gold or silver contacts. The depth behind panel is only 9.2 mm. The range is water-jet proof IP65. The contact blocks can be combined with other components on the same PCB.
The RAFIX 22 FS series offers a compact control component range that can be mounted on a common PCB with a very low profile. The components feature a 9.2 mm mounting depth, 22.3 mm panel cut‑out, IP65 protection, and optional gold or silver contact blocks. Various lens and front‑ring options provide flexible design choices for round or square collars.

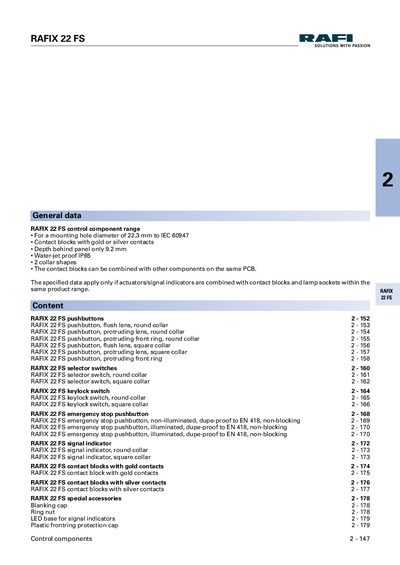

Technical data include dimensions, mechanical characteristics, environmental limits, and voltage ratings. The handbook lists order numbers for each variant, special accessories such as blanking caps and LED bases, and provides installation drawings for easy integration into low‑profile data‑entry panels.
| IP protection | IP65 |
|---|---|
| Operating travel | 4 mm |
| Robustness | min. 100 N |
| Ambient temperature (operating) min | -25 °C |
| Ambient temperature (operating) max | +70 °C |
| Storage temperature min | -40 °C |
| Storage temperature max | +80 °C |
| Gold contact voltage rating | 42 V max |
| Silver contact voltage rating | 250 V max |
They are rated IP65.
Gold contacts are rated for up to 42 V.
Available lens colors include transparent white, red, yellow, green, blue, and opaque black, white, red, yellow, green, blue, and slate‑grey.
