Start here

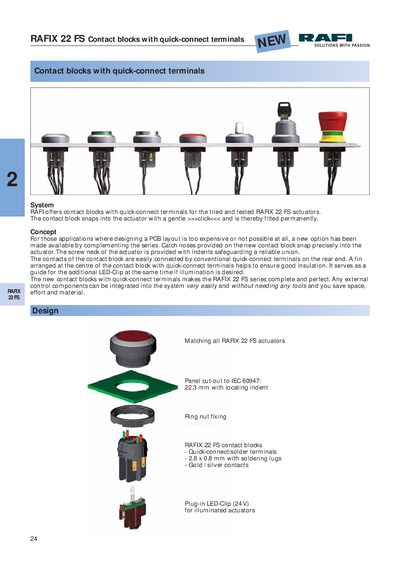

RAFI RAFIX 22 FS Contact Blocks Handbook
This handbook introduces the RAFIX 22 FS contact blocks with quick‑connect terminals that snap permanently into the actuator. It explains the concept, design dimensions, and the available contact materials (gold or silver) as well as the optional LED‑Clip for illumination.
Technical data such as panel cut‑out size, mounting depth, terminal dimensions, electrical ratings, robustness, and environmental approvals are listed. The document also provides part numbers for universal and emergency‑stop variants and shows the range of LED‑Clip colours and accessory options.
RAFI RAFIX 22 specifications
| Panel cut‑out size | 22.3 mm with locating indent |
|---|---|
| Mounting depth | 27 mm |
| Terminal size | 2.8 × 0.8 mm |
| Contact material | Gold (Au) or Silver (Ag) |
| Operating voltage (min) | 5 V |
| Operating current (min) | 1 mA |
| Rated power (max) | 250 mW |
| Robustness | 100 N |
| IP rating | IP65 |
| Operating temperature range | -25 °C to +70 °C |
| Storage temperature range | -40 °C to +80 °C |
All RAFI RAFIX 22 documents by type
Questions answered in these manuals
What is the panel cut‑out size for the RAFIX 22 FS contact blocks?
The panel cut‑out is 22.3 mm with a locating indent, conforming to IEC 60947.
What contact materials are available for the blocks?
Gold contacts are used for low‑voltage switching (min 5 V/1 mA) and silver contacts for mains voltage up to 250 V/4 A.
How many switching operations are guaranteed for the contact blocks?
The contact blocks are rated for 1 million momentary and 0.5 million latching operations.
What IP protection rating do the RAFIX 22 FS components have?
They are rated IP65.
What voltage rating do the gold contact blocks support?
Gold contacts are rated for up to 42 V.
