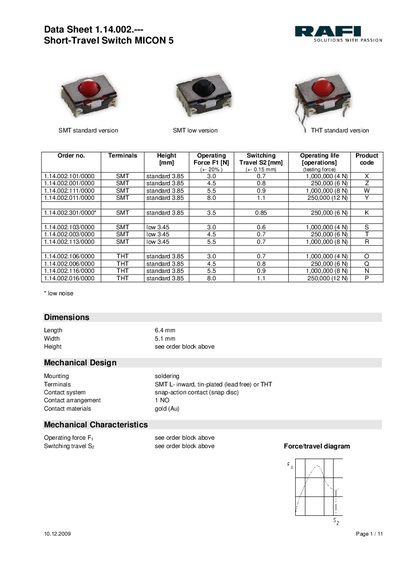

MICON 5 short-travel switch data sheet, including product height, operating force, switching travel, product code and other information
The MICON 5 is a short‑travel pushbutton switch offered in SMT and THT mounting versions. Dimensions, operating force, travel and life expectancy are listed for each version, with typical heights of 3.85 mm (SMT) or 3.80 mm (THT) and up to 1,000,000 operations.
Electrical specifications include a rated voltage of 0.02‑42 V DC, rated current of 0.01‑100 mA, contact resistance below 100 mΩ, bouncing time under 5 ms and insulation resistance of 250 V AC. The sheet also details plunger variants, robustness (max 30 N) and packaging information.
| Rated voltage | 0.02 - 42 V DC |
|---|---|
| Rated current | 0.01 - 100 mA |
| Rated power (max) | 1 W (Ohmic load) |
| Insulation resistance | 250 V AC |
| Operating temperature (ambient) | -40°C … +85°C |
| Storage temperature (ambient) | -50°C … +95°C |
| Operating life | up to 1,000,000 operations |
| Height (SMT version) | 3.85 mm |
| Travel (SMT version) | 3.0 mm |
The switch is rated for 0.02 to 42 V DC.
The plungers are rated for a maximum force of 30 N.
Both SMT and THT standard versions are offered.
Certain versions are rated for up to 1,000,000 operations.
