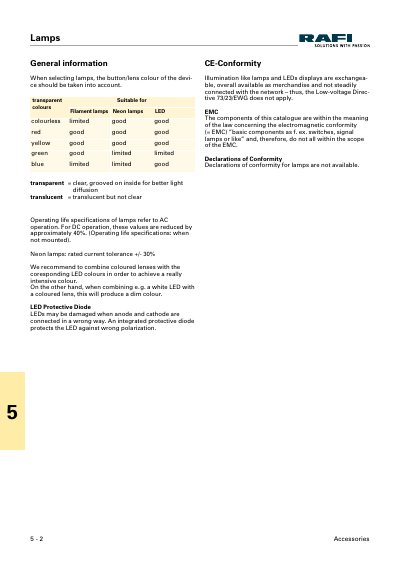

This document introduces the characteristics of the lamps, LED display lights, including the color of the lamp, the suitability, the color of the LED, the LED protection diode and so on.
The catalogue lists a wide range of lamps – filament, neon and LED – together with their electrical ratings, dimensions and medium operating life. It also includes guidance on colour lenses, protective diodes for LEDs and safety notes such as EMC and CE‑conformity.
Technical data sheets for each lamp type give rated voltage, current, power and typical operating life. Accessories such as lamp extractors and recommended series resistors for LED circuits are also described.
| Neon lamp current tolerance | ±30 % |
|---|---|
| LED forward voltage (typical) | 2 V (max 3 V) |
| LED operating life at 25 °C | 100,000 h |
A 680 Ω resistor rated 0.50 W is recommended.
LED lamps are rated for an operating life of 100,000 hours at 25 °C.
Neon lamps have a rated current tolerance of plus or minus 30 %.
No, illumination lamps and LEDs are not steadily connected to the network, so the Low‑voltage Directive does not apply.
