RAFIX 16, RAFIX 16 F, RAFIX 22 QR are a series of combination switches from Rossheim, including buttons, switches, buzzers, indicator lights, contactors, etc.
The RAFIX 16 series is a complete range of control components designed for a 16.2 mm mounting hole. The components feature IP65 protection, gold or silver contacts, and a low‑profile design with three collar shapes. Technical data such as shock resistance, operating temperature ranges and mounting dimensions are listed for each actuator and accessory.

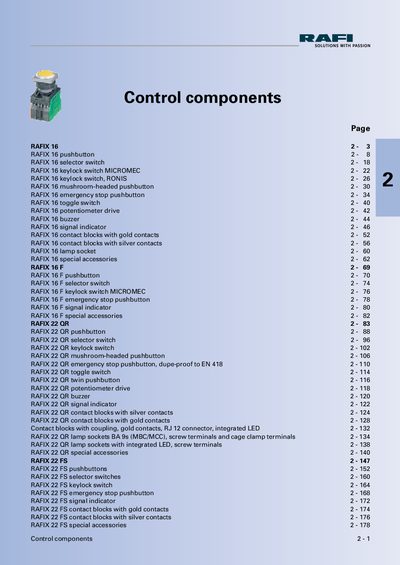

The handbook also covers accessories like label holders, lamp sockets, and special insulating housings, and provides detailed assembly and disassembly procedures, including lamp replacement from the front and legending options.
| Mounting hole diameter | 16.2 mm |
|---|---|
| Degree of protection | IP65 |
| Operating temperature (non‑illuminated) | -25 °C … +70 °C |
| Operating temperature (illuminated) | -25 °C … +55 °C |
| Shock amplitude | < 50 g |
| Starting torque | 1.2 Nm max. |
The components are designed for a 16.2 mm mounting hole.
All RAFIX 16 components have an IP65 protection rating.
Illuminated units operate from –25 °C up to +55 °C.
The contact blocks snap directly onto the actuators without a coupling element and can be removed by turning.
