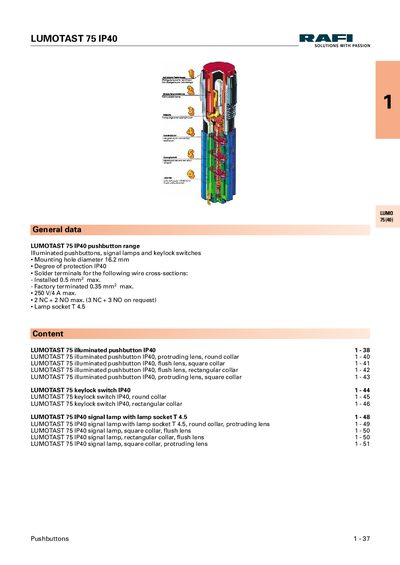

This document is a catalogue of the LUMOTAST 75 IP40 pushbutton range, which includes illuminated pushbuttons, signal lamps and keylock switches with protection class IP40, a mounting hole diameter of 16.2 mm and a rated voltage of 250 V/4 A.
The LUMOTAST 75 IP40 handbook provides an overview of the product range, including illuminated pushbuttons, keylock switches and signal lamps with various lens and collar options. It lists order numbers, accessories, and technical data for each variant.
Technical specifications such as degree of protection, mounting dimensions, electrical ratings, and environmental limits are detailed, along with contact arrangements and approvals. The document also includes ordering information and optional accessories.
| Degree of protection | IP40 |
|---|---|
| Mounting hole diameter | 16.2 mm |
| Rated voltage | 250 V |
| Rated current (AC) | 4 A |
The product has a protection class of IP40.
The mounting hole diameter is 16.2 mm.
The device is rated for up to 250 V and 4 A.
It can operate from –25 °C to +70 °C, and be stored from –40 °C to +80 °C.
