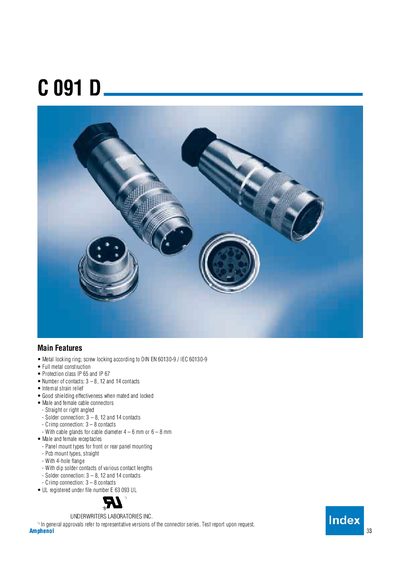

Amphenol C091 D Connector Series Datasheet
The Amphenol C091 D series provides metal‑locking connectors with options for straight or right‑angled mounting. Available in male and female versions, the series supports 3 to 14 contacts, multiple contact arrangements, and both solder and crimp termination styles.
The series complies with IEC and UL standards, offering IP65/IP67 protection, high shielding effectiveness, and a range of material choices such as die‑cast nickel‑plated housings and silver or gold‑plated contacts. Detailed part numbers and torque specifications are provided for proper assembly.
Amphenol C091 specifications
| Rated voltage (IEC) | 300 V |
|---|---|
| Rated impulse withstand voltage | 1500 V |
| Pollution degree | 1 |
| IP protection class | IP65 / IP67 |
| Insertion force | 25 N |
| Contact resistance | < 5 mΩ |
| Number of contacts | 3, 4, 5, 6, 8, 12, 14 |
| Housing material | Die‑cast, nickel plated |
| Locking torque (screw coupling) | 0.5 – 0.7 Nm |
