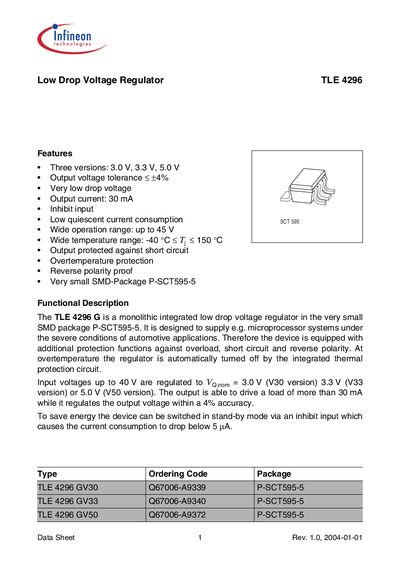

TLE 4296 GV30, GV33, GV50 is a monolithic integrated low drop voltage regulator with three versions of 3.0 V, 3.3 V, 5.0 V, output voltage tolerance ≤ ±4%, output current 30 mA, inhibit input, low quiescent current consumption, wide operating range up to 45 V, wide temperature range -40 °C ≤ Tj ≤ 150 °C, output protected against short circuit, overtemperature protection, reverse polarity proof.
The TLE4296 is a monolithic low‑drop voltage regulator offered in three versions (3.0 V, 3.3 V, 5.0 V). It provides up to 30 mA output current, includes short‑circuit, over‑temperature and reverse‑polarity protection, and can be placed in standby mode via an inhibit input to reduce quiescent current.
The device operates from an input voltage range of 4 V to 45 V, works over a temperature span of –40 °C to 150 °C, and is supplied in a very small SMD package (P‑SCT595‑5). Detailed electrical characteristics, pin definitions, and package outlines are provided in the following sections.
| Output voltage tolerance | < +4 % |
|---|---|
| Output current | 30 mA |
| Input voltage range | 4.0 V – 45 V |
| Operating temperature range | -40 °C to 150 °C |
| Quiescent current (stand‑by) | < 1 µA |
| Drop voltage | 0.25 V – 0.30 V |
The output voltage tolerance is less than +4 %.
The regulator can accept an input voltage up to 45 V.
In standby the quiescent current drops below 1 µA.
The device includes short‑circuit protection, over‑temperature protection, and reverse‑polarity protection.
