The document describes the features and characteristics of the 200-Pin Small Outline Dual-In-Line Memory Modules SO-DIMM DDR SDRAM with model numbers HYS64D32020[H/G]DL–5–C and HYS64D[32020/16000][H/G]DL–6–C.

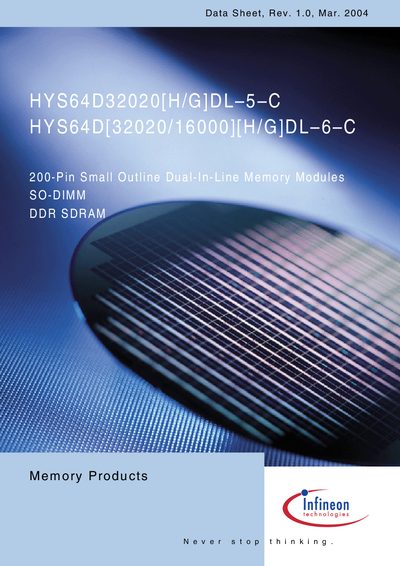

![infineon HYS64D32020[H/G]DL 5 C HYS64D[32020/16000][H/G]DL 6 C 200-Pin Small Outline Dual-In-Line Memory Modules SO-DIMM DDR SDRAM - cover page](/uploads/covers/7b/7ba3e3894746210408e697b4b00e6860.jpg)
The HYS64D32020[H/G]DL-5-C and HYS64D[32020/16000][H/G]DL-6-C are 200‑Pin Small Outline Dual‑In‑Line Memory Modules (SO‑DIMM) that implement DDR SDRAM technology. They are offered in one‑rank 16M × 64 and two‑rank 32M × 64 organizations and comply with JEDEC standards.
Key specifications include a single +2.5 V (+ 0.2 V) power supply, support for DDR400 and DDR333 speeds, a maximum clock frequency of 200 MHz (CL3), and a module size of 67.60 mm × 31.75 mm × 2.4/3.80 mm. The modules feature gold‑plated contacts and a Serial Presence Detect (SPD) EEPROM for configuration data.
| Form factor | 200‑Pin Small Outline Dual‑In‑Line Memory Modules |
|---|---|
| Capacity organization | One rank 16M × 64 and two ranks 32M × 64 |
| Power supply | Single +2.5 V (+ 0.2 V) |
| Supported DDR speeds | DDR400, DDR333 |
| Module dimensions | 67.60 mm × 31.75 mm × 2.4/3.80 mm |
| Contact finish | Gold plated contacts |
| SPD type | Serial Presence Detect with E7PROM |
They are 200‑Pin Small Outline Dual‑In‑Line Memory Modules (SO‑DIMM).
The modules support DDR400 and DDR333 speeds.
A single +2.5 V (+ 0.2 V) power supply is required.
The module measures 67.60 mm × 31.75 mm × 2.4/3.80 mm.
