B82462-G4 is a power inductor produced by TDK. The inductor is made of ferrite core and has a wide temperature range, high rated current, low DC resistance, and is suitable for reflow soldering. It is used in filtering, coupling, decoupling, DC/DC converters and other electronic circuits.

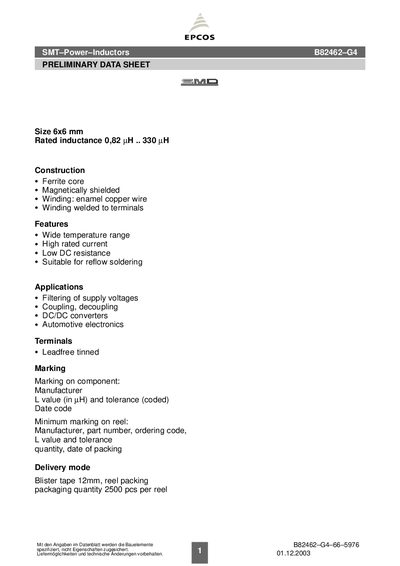

The EPCOS B82462‑G4 is a surface‑mount power inductor with a ferrite core and enamel‑copper windings, designed for high‑current applications and suitable for reflow soldering. It is magnetically shielded and offered in a 6 × 6 mm package.
The data sheet provides detailed electrical parameters such as inductance values from 0.82 µH to 330 µH, rated current limits, DC resistance, self‑resonance frequency, and climatic classification according to IEC 60068‑1. Typical applications include filtering of supply voltages, coupling/decoupling, DC‑DC converters and automotive electronics.
| Package size | 6 × 6 mm |
|---|---|
| Rated inductance range | 0.82 µH – 330 µH |
| Climatic category | IEC 60068‑1 55/125/56 |
| Solderability (wetting) | > 90 % at 235 °C for 5 s |
| Maximum permissible DC temperature rise | ≤ 40 K at 85 °C ambient |
The B82462‑G4 comes in a 6 × 6 mm surface‑mount package.
The inductance can be selected from 0.82 µH up to 330 µH.
It is supplied either on 12 mm blister tape or in reel packs of 2 500 pieces.
It complies with IEC 60068‑1 55/125/56 climatic category.
