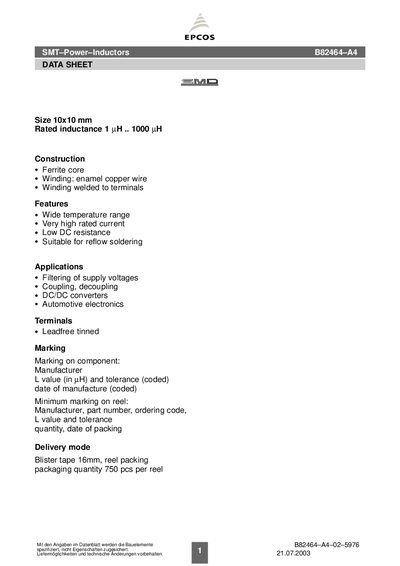

EPCOS B82464-A4 Power Inductor Datasheet
The B82464-A4 series are 10 × 10 mm surface‑mount power inductors with a ferrite core and enamel copper windings. They are designed for high rated current, low DC resistance, and are suitable for reflow soldering. Typical applications include filtering of supply voltages, coupling/decoupling, DC‑DC converters, and automotive electronics.
The datasheet lists general technical data such as rated inductance range (1 µH – 1000 nH), self‑resonance frequency, DC resistance measured at 20 °C, and weight (≈1.5 g). It also provides a detailed table of inductance values, tolerances, rated currents, DC resistance, and corresponding ordering codes, together with packaging options (blister tape or reel). This manual is written in German.
Epcos B82464 specifications
| Size | 10 × 10 mm |
|---|---|
| Rated inductance range | 1 µH … 1000 nH |
| Weight | ≈1.5 g |
| Inductance 1.0 µH, tolerance 0.1 %, rated current 20 A, DC resistance 0.009 Ω | Ordering code B82464-A4102-M |
All Epcos B82464 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the physical size of the B82464-A4 inductor?
The inductor measures 10 × 10 mm.
What is the weight of the B82464-A4 component?
It weighs approximately 1.5 g.
What is the physical size of the B82464‑G4 inductor?
The inductor measures 10 × 10 mm.
What delivery options are available for the B82464‑G4?
It can be supplied in blister tape (16 mm) or reel packing, with 750 pieces per reel.
