We provide 38 kinds of safety-level device sockets, including 2-pin 10A/250V~ sockets, sockets in black and gray, sockets with 6.3mm socket and socket with screws, the socket screw hole distance is 40mm, the socket packing unit is 10, the socket transportation packing unit is 200.
The APSA protective device socket is a 2‑pole outlet rated for 10 A and 250 V, designed for both standard (up to 70 °C) and hot (up to 155 °C) applications. It complies with DIN VDE 0625 Part 1 and European standard 60320.

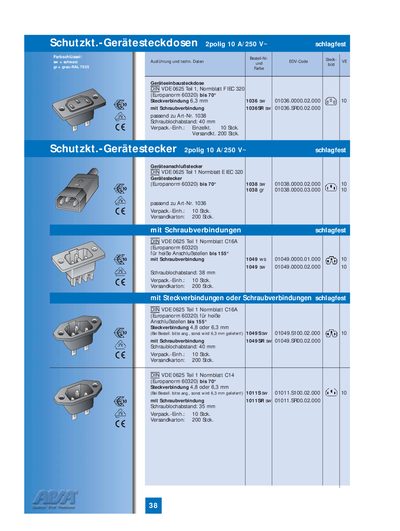

The document lists technical specifications such as plug connection size, screw‑hole spacing, available colors, and packaging details, as well as ordering numbers for each variant. This manual is written in German.
| Poles | 2 |
|---|---|
| Current rating | 10 A |
| Voltage rating | 250 V~ |
| Plug connection size | 6.3 mm (optional 4.8 mm) |
| Screw hole spacing | 40 mm (also 38 mm, 35 mm for other variants) |
| Standard compliance | DIN VDE 0625 Teil 1, Normblatt FIEC 320 (Europanorm 60320) |
| Available colors | schwarz, grau‑RAL 7035 |
The screw hole spacing is 40 mm.
The hot‑version socket is rated up to 155 °C.
Plug connections are available in 6.3 mm, with an optional 4.8 mm size.
Sockets can be ordered in black (schwarz) or gray RAL 7035.
