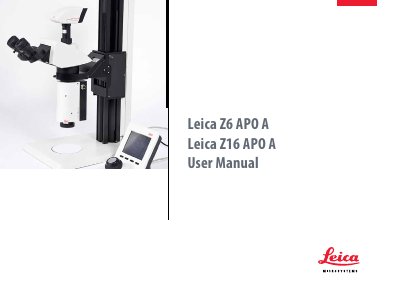

This manual introduces the use of Leica Z6 APO A/Z16 APO A.
This manual covers the safe handling, installation, and use of the Leica Z6 APO A and Z16 APO A macroscopes. It includes detailed safety concepts, cleaning guidelines, and requirements for authorized service and spare parts.
The document also describes the modular design, optical accessories, illumination systems, and provides step‑by‑step instructions for assembly, focusing, and video/phototube operation, along with specifications and maintenance tips.
| Eyepiece field numbers | 10× = 21, 16× = 14, 25× = 9.5, 40× = 6 |
|---|---|
| Tube factor for coaxial incident light | 1.5× |
Yes, the Leica Z series can be used in clean rooms without any problems.
Clean with warm soapy water and distilled water; for stubborn dirt use ethanol or isopropanol, and remove dust with a pneumatic rubber bulb or soft brush.
