SMCG/J6036 thru SMCG/J6072A is a series of Bi-directional Silicon Transient Suppressors used in AC applications where large voltage transients can permanently damage voltage-sensitive components.
The SMCG/J6036 through SMCG/J6072A series are bidirectional silicon transient voltage suppressors designed for AC applications where large voltage spikes can damage sensitive components. They provide 1500 W peak power, a wide voltage range (5.5 V to 185 V), low inductance, and a low‑profile surface‑mountable package.

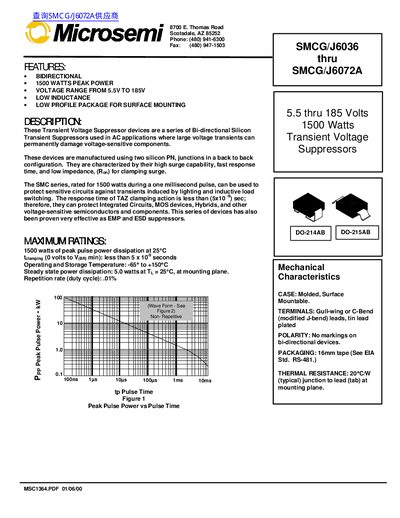

The datasheet lists mechanical details (DO‑214AB/DO‑215AB packages, gull‑wing or C‑bend leads), thermal resistance of 20 °C/W, and a duty cycle of 0.01 %. Electrical characteristics include a response time under 5 µs, operating temperature from –65 °C to +150 °C, and steady‑state dissipation of 5 W at 25 °C.
| Peak Power | 1500 W |
|---|---|
| Voltage Range | 5.5 V to 185 V |
| Response Time | < 5 µs |
| Operating Temperature | -65 °C to +150 °C |
| Steady‑State Power Dissipation | 5 W at 25 °C |
| Thermal Resistance | 20 °C/W (typical) |
| Duty Cycle | 0.01 % |
| Package Types | DO‑214AB, DO‑215AB |
The series is rated for 1500 W peak pulse power during a 1 ms pulse.
They operate from –65 °C to +150 °C.
They are offered in DO‑214AB and DO‑215AB surface‑mountable packages.
The clamping response time is less than 5 µs.
