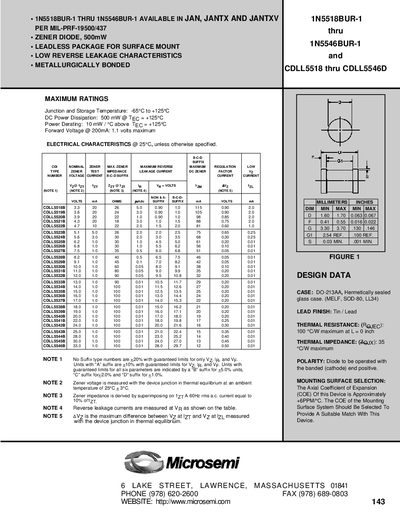

This datasheet provides the technical specifications of Microsemi CDLL5523B, including package, pin, maximum ratings, electrical characteristics, etc.
The CDLL5518‑CDLL5546D series are lead‑less, surface‑mount Zener diodes offered in a MELF (SOD‑80) package. They feature low reverse‑leakage characteristics and are supplied in several voltage options.
The datasheet provides maximum ratings, electrical characteristics, polarity information, and thermal performance curves. It also includes tables of Zener voltage, impedance, and power‑derating data for design reference.
| Junction and Storage Temperature | -65°C to +125°C |
|---|---|
| DC Power Dissipation | 500 mW @ TEG = +125°C |
| Power Derating | 10 mW/°C above TEG = +125°C |
| Forward Voltage @ 200 mA | 1.1 V max |
The diode should be operated with the banded (cathode) end positive.
The maximum power dissipation is 500 mW at a junction temperature of +125 °C.
It can be stored from –65 °C up to +125 °C.
