This document is the technical data of 2N2323 series silicon controlled rectifiers. It introduces the maximum ratings, average forward current, forward surge peak current, cathode-gate current, operating temperature range, storage temperature range and other characteristics of the series products.

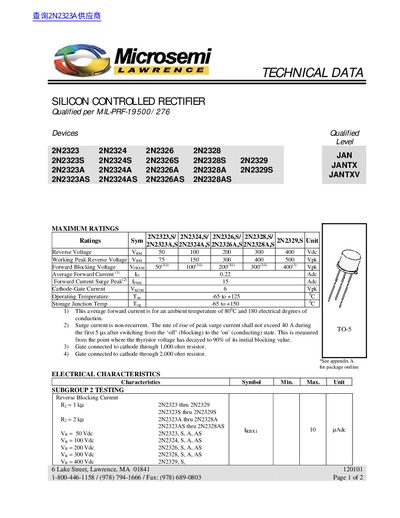

The Microsemi Lawrence 2N2323 series silicon controlled rectifiers are qualified per MIL‑PRF‑19500/276 and cover part numbers 2N2323 through 2N2329 with various suffixes (S, A, AS). The datasheet lists maximum ratings such as reverse voltage, forward current, and operating temperature ranges.
Electrical characteristics are detailed for each suffix, including reverse blocking voltage, forward blocking current, gate trigger voltage, and testing parameters like exponential voltage rise and dv/dt limits.
| Reverse Voltage (Vm) | 50‑400 Vde depending on model |
|---|---|
| Average Forward Current @ 80 °C | 0.22 A |
| Gate Trigger Voltage | 6 Vde |
| Operating Temperature Range | -65 °C to +125 °C |
| Storage Junction Temperature Range | -65 °C to +150 °C |
The 2N2326 is rated for a reverse voltage of 200 Vde.
The average forward current is 0.22 A at an ambient temperature of 80 °C.
A gate trigger voltage of 6 Vde is required.
The devices operate from –65 °C up to +125 °C.
