This document describes a product that is ISO 9001 certified and features an 8 diode array, a standard 16-pin dual-in-line package, and UL 94V-0 flammability classification. It has a maximum operating temperature of 1500°C, a minimum breakdown voltage of 90V, and a maximum continuous forward current of 400mA with a power dissipation of 500mW.

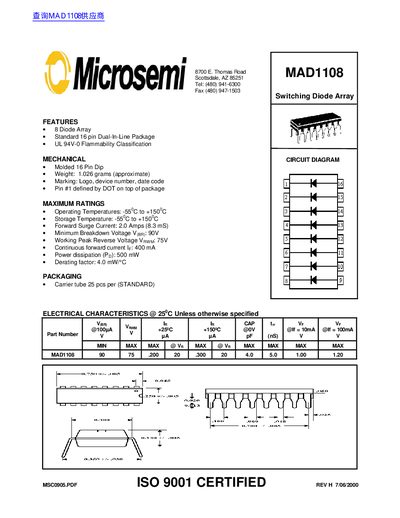

The MAD1108 is an 8‑diode switching array supplied in a standard 16‑pin dual‑in‑line (DIP) package with UL 94V‑0 flammability rating. It weighs about 1.0 g and is marked with logo, device number and date code.
Key electrical ratings include an operating temperature range of –55 °C to +150 °C, forward surge current of 2 A (8.3 ms), continuous forward current of 400 mA, peak reverse voltage of 75 V, and a maximum power dissipation of 500 mW. The device is packaged in carrier tubes of 25 pieces each.
| Diode array count | 8 |
|---|---|
| Package type | Standard 16‑pin Dual‑In‑Line Package (DIP) |
| Flammability classification | UL 94V‑0 |
| Weight | 1.026 g (approximate) |
| Operating temperature range | -55 °C to +150 °C |
| Storage temperature range | -55 °C to +150 °C |
| Forward surge current | 2.0 A (8.3 ms) |
| Minimum breakdown voltage | 90 V |
| Peak reverse voltage | 75 V |
| Continuous forward current | 400 mA |
| Power dissipation | 500 mW |
| Derating factor | 4.0 mW/°C |
It uses a standard 16‑pin dual‑in‑line (DIP) package.
It operates from –55 °C up to +150 °C.
The device can handle a forward surge current of 2 A for about 8.3 ms.
The maximum power dissipation is 500 mW.
