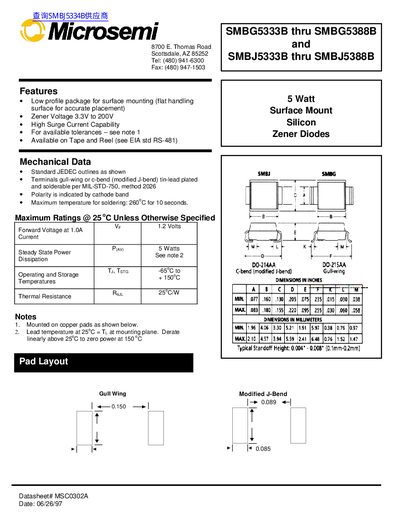

This is a datasheet of SMBJ5333B to SMBJ5388B
The SMBG5333B‑SMBG5388B and SMBJ5333B‑SMBJ5388B series are low‑profile surface‑mount silicon Zener diodes covering a voltage range of 3.3 V to 200 V with a 5 W power rating. They are offered in DO‑214AA (C‑bend) and DO‑215AA (Gull‑wing) packages for easy placement on printed‑circuit boards.
The datasheet provides mechanical dimensions, electrical characteristics such as forward voltage, dynamic and surge currents, and tolerance notes. It also includes maximum ratings, soldering temperature limits, and storage temperature specifications.
| Zener Voltage Range | 3.3 V to 200 V |
|---|---|
| Maximum Power Dissipation | 5 W |
| Maximum Soldering Temperature | 260 °C for 10 s |
The Zener voltage ranges from 3.3 V to 200 V.
Each diode is rated for a maximum power dissipation of 5 W.
The maximum soldering temperature is 260 °C for up to 10 seconds.
