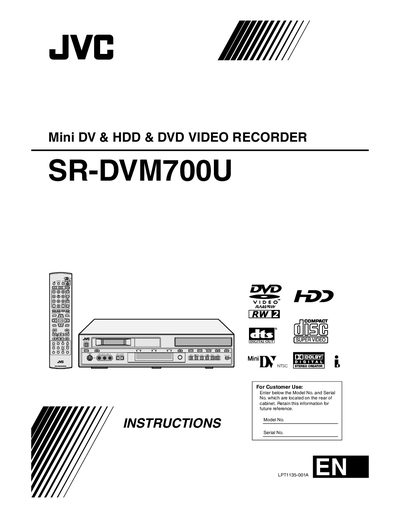

This document is an instruction manual for the JVC Mini DV & HDD & DVD video recorder. It describes the features and characteristics of the product, including recording modes for DV, HDD, and DVD, input selection, display settings, audio options, etc.
This manual begins with safety warnings, including electric‑shock precautions, laser‑product classification, and grounding requirements for outdoor antennas. It also details proper power connections (AC 120 V ~ 60 Hz) and warns against using the unit in wet or extreme environments.
The guide then covers installation, remote‑control functions, disc‑format support, basic operations for DVD, HDD, and DV decks, and troubleshooting. Appendices list the RS‑232C command set, technical specifications, and a glossary of terms.
| Power Supply | AC 120 V ~ 60 Hz only |
|---|---|
| Laser Classification | Class 1 laser product |
| Supported Disc Types | DVD‑R, DVD‑RW, DVD‑RAM, DVD‑Video, CD, MP3, JPEG |
| DVD‑RAM Capacity | 12 cm: 4.7 GB/9.4 GB; 8 cm: 1.4 GB/2.8 GB |
| Video Signal Compatibility | NTSC recording/playback; PAL playback on DVD deck |
| Regulatory Compliance | FCC Part 15, Canadian ICES‑003 |
Read all safety warnings, avoid exposing the unit to rain or moisture, use only AC 120 V ~ 60 Hz power, and do not open the unit yourself; refer to the Safety First section for details.
The antenna and its cable must be grounded according to Article 810 of the National Electrical Code (NEC) to protect against voltage surges and static charges.
The unit can record on DVD‑R, DVD‑RW, DVD‑RAM, and DVD‑Video discs, as well as CD‑R and CD‑RW for audio; it also supports MP3 and JPEG files when formatted correctly.
Insert the plug fully, matching the wide blade of the plug to the wide slot of the outlet, and ensure the outlet is properly grounded.
