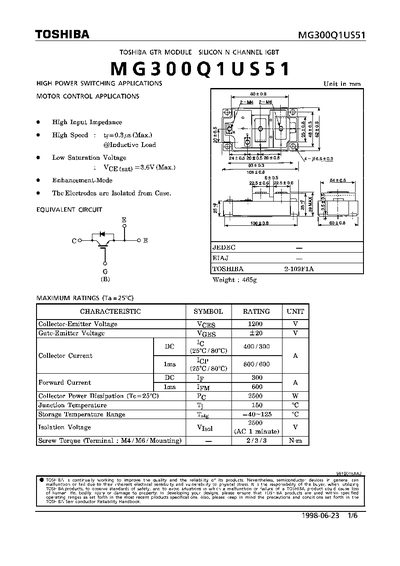

The MG300Q1US51 is a silicon N‑channel IGBT module designed for high‑power switching and motor‑control applications. The datasheet lists its electrical parameters, safe‑operating area, and typical performance curves to aid designers in selecting the device for inductive load and high‑speed switching circuits.
Key specifications such as collector‑emitter voltage, gate‑emitter voltage, current ratings, power dissipation, and thermal limits are presented in tabular form, while characteristic curves illustrate switching times, forward voltage, and safe‑operating area under various temperature conditions.
| Collector‑Emitter Voltage (VCE) | 1200 V (max) |
|---|---|
| Gate‑Emitter Voltage (VGE) | 20 V (max) |
| Collector Current (Ic) | 400 A typical / 300 A max |
| Collector‑Emitter Saturation Voltage (VCE(sat)) | 3.6 V (max) |
| Collector Power Dissipation (P_D) | 2500 W |
| Junction Temperature (Tj) | 150 °C |
| Storage Temperature Range | -40 °C to 125 °C |
| Isolation Voltage (V_iso, AC 1 min) | 2500 V |
The MG300Q1US51 can withstand up to 1200 V collector‑emitter voltage.
The typical collector current is 400 A, with a maximum of 300 A under specified conditions.
The module is rated for a continuous power dissipation of 2500 W at 25 °C ambient temperature.
The junction temperature limit is 150 °C, and the storage temperature range is –40 °C to 125 °C.
