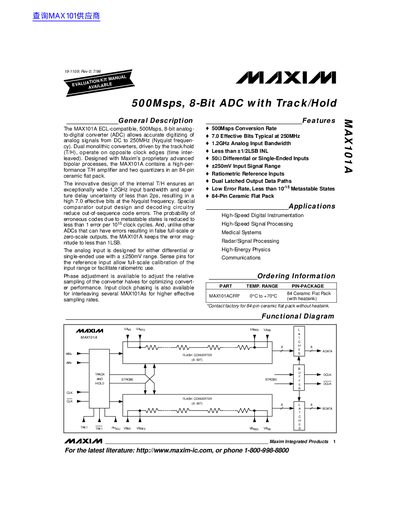

The MAX101A data sheet is 500Msps, 8-bit analog to digital converter
The MAX101A is an 8‑bit, 500 Msps analog‑to‑digital converter designed for high‑speed digital instrumentation, signal processing, radar, communications and medical systems. It features a high‑performance track‑and‑hold amplifier, dual interleaved converters, and a wide 1.2 GHz input bandwidth.
The device is supplied in an 84‑pin ceramic flat‑pack (with optional heatsink) and includes differential and single‑ended inputs, ratiometric reference pins, and programmable phase adjustment for interleaving multiple converters.
| Conversion Rate | 500 Msps |
|---|---|
| Effective Number of Bits (ENOB) | 7.0 bits (typical at 250 MHz) |
| Analog Input Bandwidth | 1.2 GHz |
| Input Signal Range | ±250 mV |
| Package | 84‑Pin Ceramic Flat Pack (with optional heatsink) |
| Negative Supply Voltage | -5.2 V |
| Differential/Single‑Ended Inputs | 502 pins |
The MAX101A can convert at up to 500 Msps.
The device provides a 1.2 GHz analog input bandwidth.
The ADC is offered in an 84‑pin ceramic flat‑pack, optionally with a heatsink.
