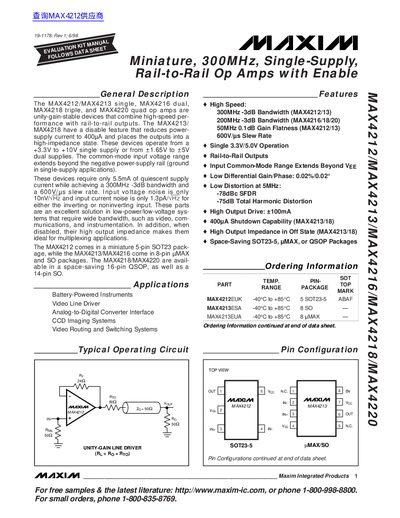

MAX4212/MAX4213/MAX4216/MAX4218/MAX4220 series op amps are high-performance, high-integration single/dual/triple/quad op amp modules with high speed, low power consumption, high output impedance, etc.
The MAX4212‑MAX4220 family are miniature, single‑supply, rail‑to‑rail operational amplifiers with enable control. They deliver high speed performance up to 300 MHz bandwidth, 600 V/µs slew rate, and low noise suitable for video, communications, and instrumentation applications.
These devices are offered in compact packages such as SOT‑23‑5, 8‑pin UMAX/SO, and 16‑pin QSOP. Ordering information, pin configurations, and detailed electrical characteristics are provided, and samples can be requested from Maxim Integrated.
| Bandwidth (MAX4212/13) | 300 MHz |
|---|---|
| Slew Rate | 600 V/µs |
| Output Drive Capability | 100 mA |
| Package Options | SOT‑23‑5, 8‑pin UMAX/SO, 16‑pin QSOP, 14‑pin SO |
Both parts are offered in a space‑saving 16‑pin QSOP and a 14‑pin SO package.
