Maxim MAX6365/MAX6368 SOT23 Low-Power uP Supervisory Circuits Battery Backup Chip-Enable Gating Datasheet

The MAX6365-MAX6368 supervisory circuits simplify power-supply monitoring, battery-backup control functions, and memory write protection in microprocessor (µP) systems. The circuits significantly improve the size, accuracy, and reliability of modern systems with an ultra- small integrated solution. These devices perform four basic system functions: 1) Provide a µP reset output during VCC supply power- up, power-down, and brownout conditions. 2) Internally control VCC to backup-battery switching to maintain data or low-power operation for CMOS RAM, CMOS µPs, real-time clocks, and other digital logic when the main supply fails. 3) Provide memory write protection through internal chip-enable gating during supply or processor faults. 4) Include one of the following options: a manual reset input (MAX6365), a watchdog timer function (MAX6366), a battery-on output (MAX6367), or an auxiliary user-adjustable reset input (MAX6368). The MAX6365-MAX6368 operate from VCC supply volt- ages as low as 1.2V. The factory preset reset threshold voltages range from 2.32V to 4.63V (see Ordering Information). In addition, each part is offered in three reset output versions: push-pull active low, open-drain active low, or open-drain active high (see Selector Guide). The MAX6365-MAX6368 are available in minia- ture 8-pin SOT23 packages.

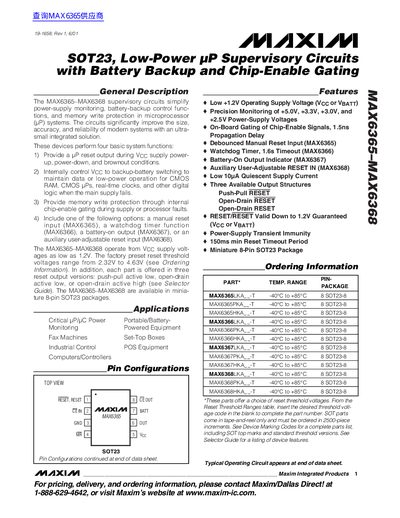

Maxim MAX6365/MAX6368 SOT23 Low-Power uP Supervisory Circuits Battery Backup Chip-Enable Gating Datasheet - cover page
Brand
Maxim
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
15
File format
PDF
File size
217 KB
Published
09 May, 2012
Updated
28 September, 2023
MD5 checksum
0EBB5FE88BF897E3E6ECFD3BABDAC76B

About this manual

The MAX6365 and MAX6368 are low‑power microprocessor supervisory circuits in an 8‑pin SOT‑23 package. They provide reset output, battery‑backup switching, memory write protection, and optional functions such as manual reset, watchdog timer, battery‑on indicator, or adjustable reset input.

The devices operate from 1.2 V to 5.5 V, offer three reset‑output structures, and include on‑board chip‑enable gating with a 1.5 ns propagation delay. Detailed electrical characteristics, pin descriptions, and typical operating curves are provided.

What's inside

  • General Description
  • Applications
  • Features
  • Pin Configurations
  • Electrical Characteristics
  • Absolute Maximum Ratings
  • Typical Operating Characteristics
  • Pin Description
  • Functional Diagram
  • Package Information

Specifications

Operating Voltage Range1.2 V to 5.5 V
Reset Timeout Period≥150 ms
Quiescent Supply Current≈10 µA
Package8‑pin SOT‑23

Frequently asked questions

What supply voltage range do the MAX6365/MAX6368 support?

They operate from 1.2 V up to 5.5 V.

What is the minimum reset timeout period?

The reset timeout period is at least 150 ms.

How many pins does the package have?

The devices are housed in an 8‑pin SOT‑23 package.

What is the typical quiescent current?

Typical quiescent supply current is about 10 µA.
