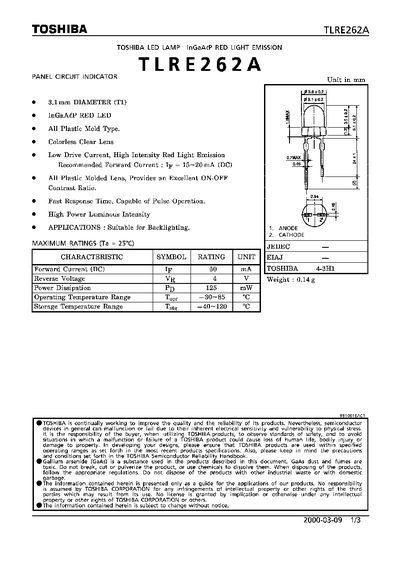

The TLRE262A is a red InGaAsP LED lamp designed for backlighting applications. It features a clear plastic molded lens, low drive current, high intensity red light, and fast response suitable for pulse operation. The device is rated for a forward current of 15‑20 mA and a maximum forward current of 50 mA.
The datasheet lists key electrical and optical characteristics, maximum ratings, and handling precautions. It includes forward voltage, reverse current, luminous intensity, peak emission wavelength, and temperature limits, as well as soldering guidelines and safety warnings for gallium arsenide handling.
| Forward Current (DC) | 50 mA |
|---|---|
| Reverse Voltage | 4 V |
| Power Dissipation | 125 mW |
The recommended forward current is 15 mA to 20 mA (DC).
Soldering temperature must not exceed 260 °C, the soldering portion should be within 2 mm of the device body, and soldering time should be limited to 33 seconds.
Gallium arsenide dust and fumes are toxic; do not break, cut, or pulverize the product, and follow proper disposal regulations.
