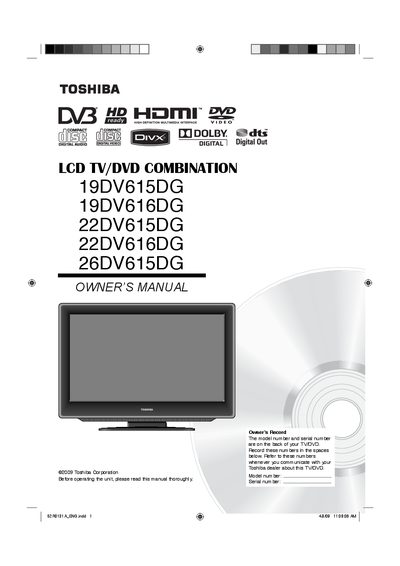

This document is the owner's manual for Toshiba's 19DV615DG, 19DV616DG, 22DV615DG, 22DV616DG, and 26DV615DG LCD TV/DVD combination. The manual includes precautions before operating, the location of the model and serial numbers on the unit, and safety warnings about unit use. Additionally, the manual provides a warning about headphone usage and information about the DVB-T function.
This manual covers important safety information, proper installation, and handling of the TV/DVD unit. It explains ventilation requirements, power connection, and precautions to avoid hazards such as laser exposure, moisture condensation, and fire risk.
The guide also details basic operation, remote‑control functions, audio/video settings, HDMI and PC connections, DVD playback features, and provides full technical specifications for the listed models.
| Screen sizes (visible) | 470 mm / 548 mm / 661 mm |
|---|---|
| Resolution | 1366 × 768 pixels |
| Power source | AC 220‑240 V, 50 Hz |
| Power consumption (operation) | ≈ 38 W at 230 V, 50 Hz |
| Power consumption (standby) | ≈ 0.8 W at 230 V, 50 Hz |
| Audio output power (max) | ≈ 1.5 W × 2 (line‑out) / ≈ 10 W × 2 (speaker) |
| HDMI input | HDMI‑compliant Type‑A connector |
| Weight | 5.2 kg / 5.4 kg / 10.3 kg (depending on model) |
The screen can be tilted 3° forward or 10° backward from vertical; hold the base while adjusting the angle.
The unit consumes about 38 W during operation and about 0.8 W in standby when connected to 230 V, 50 Hz.
