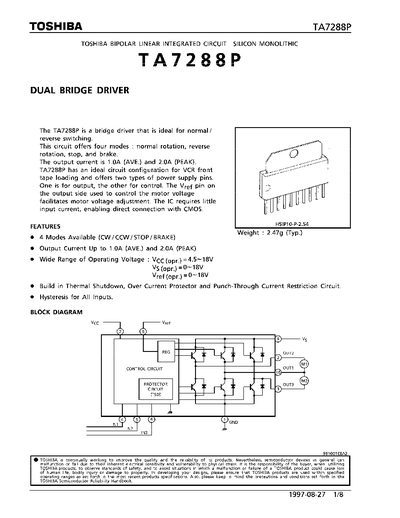

The TA7288P is a dual bridge driver IC designed for normal and reverse motor control. It supports four operating modes—clockwise, counter‑clockwise, stop, and brake—and delivers up to 1.0 A average (2.0 A peak) output current. The device operates over a wide voltage range (4.5 V to 18 V) and includes built‑in thermal shutdown and over‑current protection.
The document details pin assignments, input and output circuit configurations, maximum ratings, and electrical characteristics. Test circuits and an outline drawing illustrate typical application layouts, while specifications such as supply voltage, power dissipation, and temperature limits are listed for design reference.
| Supply Voltage (Vcc) | 25 V |
|---|---|
| Motor Drive Voltage (Vs) | 25 V |
| Reference Voltage (Vref) | 25 V |
| Peak Output Current | 2.0 A |
| Average Output Current | 1.0 A |
| Power Dissipation | 12.5 W |
| Storage Temperature | -55 °C to 150 °C |
| Typical Weight | 2.47 g |
The TA7288P supports four modes: clockwise (CW), counter‑clockwise (CCW), stop, and brake.
The device can deliver up to 2.0 A peak output current.
The TA7288P operates from 4.5 V to 18 V.
The typical weight of the TA7288P is 2.47 g.
