The image flat panel detector is the core component of a digital X-ray imaging system, used to capture X-rays and convert them into digital signals that can be used for imaging. Toshiba manufactures image flat panel detectors in a variety of sizes and resolutions to meet the needs of various applications. Toshiba's image flat panel detectors use advanced technology to provide high-quality images while reducing patient radiation exposure.

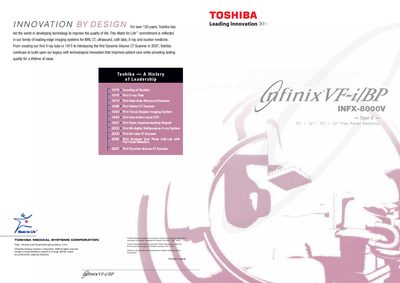

The VF‑i/BP is a 12" × 12" flat‑panel biplane detector designed for superior patient access and high‑resolution imaging. Its five‑axis design provides up to 180° of head‑end space, allowing clinicians easy tableside control and ergonomic operation.
The system incorporates multiple dose‑reduction technologies such as X‑ray beam filtration, variable dose modes, virtual collimation, and electronic zoom, while delivering 15 pps biplane acquisition at 1024 × 1024 resolution. Integrated DICOM service classes enable seamless network integration with HIS/RIS and PACS for efficient image storage and retrieval.
| Flat panel detector size | 12" x 12" |
|---|---|
| Biplane acquisition rate | 15 pps |
| Image resolution | 1024 × 1024 |
| Patient access angle | 180° head‑end space |
| DICOM service classes | Six major classes |
The system captures biplane images at 15 frames per second with a resolution of 1024 × 1024 pixels.
Yes, it includes six major DICOM service classes for seamless integration with HIS/RIS, PACS, and network storage, enabling rapid image export and patient data exchange.
