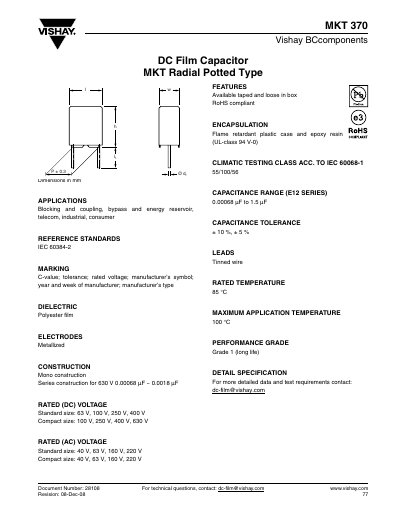

MKT 370 Vishay BCcomponents DC Film Capacitor MKT Radial Potted Type is a product from Vishay, which has blocking and coupling, bypass and energy reservoir, telecom, industrial, consumer applications. Its rated voltage is 63 V, 100 V, 250 V, 400 V, rated temperature is 85 °C, maximum application temperature is 100 °C.
The MKT 370 is a radial potted DC film capacitor from Vishay BCcomponents. It is offered in standard and compact sizes with capacitance values from 0.00068 µF up to 1.5 µF and rated voltages ranging from 40 V AC to 630 V DC. The capacitor features a polyester film dielectric, metallized electrodes, and a flame‑retardant plastic encapsulation.
The document provides detailed electrical characteristics, mechanical dimensions, mounting guidelines for printed‑circuit boards, storage conditions, and extensive inspection and climatic testing procedures required for quality assurance.
| Capacitance range | 0.00068 µF to 1.5 µF |
|---|---|
| Rated DC voltage (standard size) | 63 V, 100 V, 250 V, 400 V |
| Rated AC voltage (standard size) | 40 V, 63 V, 160 V, 220 V |
| Capacitance tolerance | ±10 %, ±5 % |
| Leads | Tinned wire |
| Performance grade | Grade 1 (long life) |
| Rated temperature | 85 °C (rated), 100 °C (maximum application) |
| Pitch (lead spacing) | 5.08 mm ±0.30 mm |
The MKT 370 capacitor is available with capacitance values from 0.00068 µF up to 1.5 µF.
Standard‑size parts are rated for 63 V, 100 V, 250 V and 400 V DC.
It is designed for PCB mounting; for pitches ≤15 mm the leads are mechanically fixed, and for larger pitches the body is clamped.
Store the capacitor between –25 °C and +40 °C with a maximum relative humidity of 80 % without condensation.
