The SFH6916 is a Vishay photocoupler with a 16-pin SOIC-16 package. It features a high current transfer ratio, low coupling capacitance and high isolation voltage.

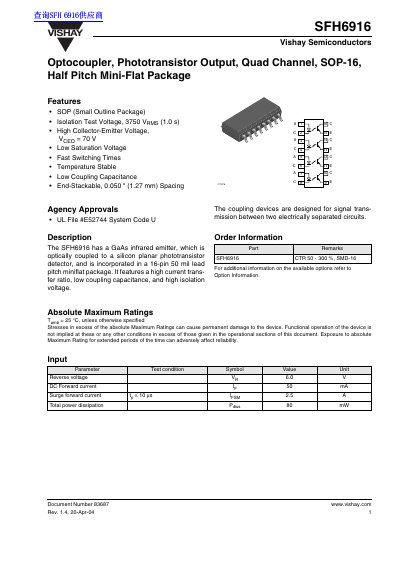

This document describes the SFH6916 optocoupler, a quad‑channel device in a SOP‑16 half‑pitch mini‑flat package. It lists key features such as high isolation voltage, low coupling capacitance, and a wide current transfer ratio.
Electrical and switching specifications are given, including isolation test voltage, collector‑emitter voltage, CTR range, and switching times. Package dimensions and environmental limits are also provided, followed by a brief ozone‑depleting substances policy statement.
| Isolation Test Voltage | 3750 VRMS (1.0 s) |
|---|---|
| Collector‑Emitter Voltage (VCE) | 70 V |
| Current Transfer Ratio (CTR) | 50 % – 300 % |
| Capacitance (C_O) | 14 pF |
| Power Dissipation per Channel (P_diss) | 150 mW |
The isolation test voltage is 3750 VRMS for 1 second.
The CTR ranges from 50 % to 300 %.
