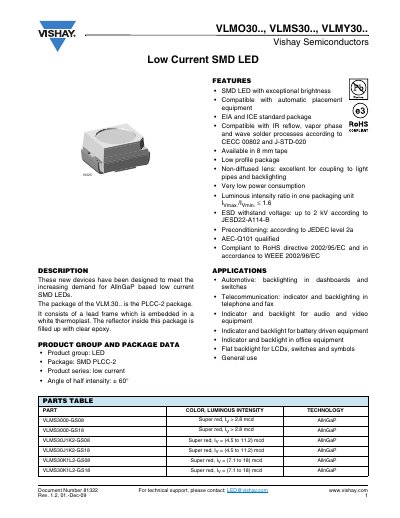

VLMO30.., VLMS30.., VLMY30.. are SMD LEDs produced by Vishay Semiconductors. The product features are high brightness, compatibility with automatic placement equipment, and can be used in automotive, telecommunications, audio and video.
The document provides an overview of Vishay's low‑current SMD LED family, covering the VLMO30.. (orange), VLMS30.. (red) and VLMY30.. (yellow) series. It lists key features such as high brightness, low power consumption, RoHS compliance and suitability for automotive, telecom and backlight applications.
Detailed sections describe package dimensions, electrical ratings, optical characteristics, tape‑and‑reel handling, and recommended soldering profiles. The handbook also includes parts tables, luminous intensity classifications and legal disclaimer information.
| Forward voltage (typical) | 1.8 – 2.2 V |
|---|---|
| Reverse voltage (ESD withstand) | up to 2 kV |
| Power dissipation | 40 mW |
| Maximum junction temperature | 125 °C |
| Operating temperature range | -40 to +100 °C |
| Package dimensions (mm) | 2.05 × 5.41 |
| Tape option | 8 mm antistatic blister tape |
The LEDs can withstand up to 2 kV according to the ESD standard.
The package measures 2.05 mm by 5.41 mm.
A lead‑free reflow profile complying with J‑STD‑020 is recommended.
They are supplied in an antistatic 8 mm blister tape suitable for automatic component insertion.
