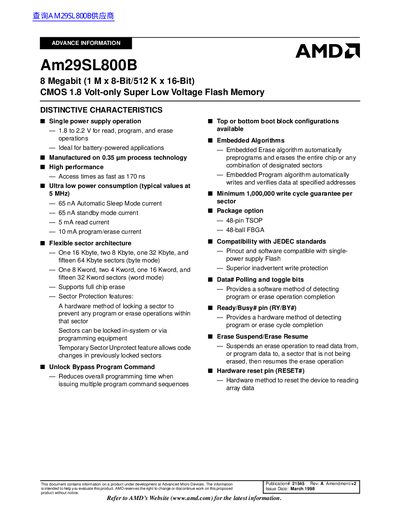

Am29SL800B 8 Megabit (1 M x 8-Bit/512 K x 16-Bit) CMOS 1.8 Volt-only Super Low Voltage Flash Memory is a flash memory chip with single power supply operation, ultra low power consumption, high performance and flexible sector architecture.
The AMD Am29SL800B is an 8‑Megabit (1 M × 8‑bit / 512 K × 16‑bit) CMOS flash memory that operates from a single 1.8 V supply. It is offered in 48‑pin TSOP and 48‑ball FBGA packages and features low power consumption, fast access times, and sector‑level protection.
The document provides detailed electrical characteristics, pin configurations, bus operation timing, ordering information, and mechanical dimensions, along with revision history and handling instructions for the FBGA package.
| Operating voltage | 1.8 V to 2.2 V |
|---|---|
| Access time | 170 ns (typical) |
| Standby current | 65 nA |
| Read current | 5 mA |
| Program/Erase current | 10 mA |
| Package options | 48‑pin TSOP, 48‑ball FBGA |
| Memory organization | 1 M × 8‑bit / 512 K × 16‑bit |
| Endurance | ≥ 1 000 000 write cycles per sector |
The device operates from 1.8 V to 2.2 V for read, program, and erase operations.
It is offered in a 48‑pin Thin Small Outline Package (TSOP) and a 48‑ball Fine‑Pitch Ball Grid Array (FBGA).
Typical access time is 170 ns (with a 200 ns option).
Each sector is guaranteed for a minimum of 1 000 000 write cycles.
