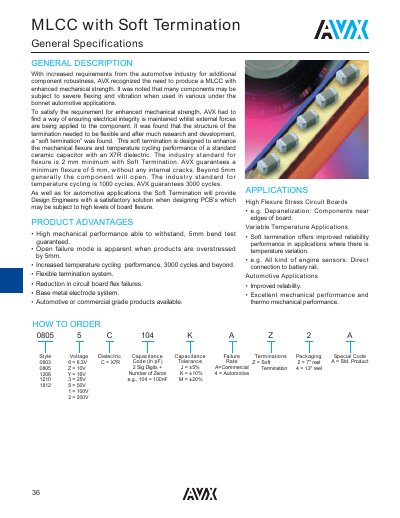

AVX recognized the need to produce a MLCC with enhanced mechanical strength to meet the increased requirements from the automotive industry. They developed a soft termination structure that can maintain electrical integrity even when external forces are applied. This MLCC is suitable for automotive applications and PCBs that may experience high levels of board flexure.
AVX developed a multilayer ceramic capacitor (MLCC) with a soft termination to meet automotive requirements for higher mechanical robustness. The soft termination allows a minimum flexure of 5 mm and survives 3000 temperature‑cycle tests, far exceeding typical industry standards. The component retains electrical integrity while withstanding severe board flexure and vibration.
The document provides performance test procedures (board‑bend and temperature‑cycle), detailed electrical specifications, ordering information, tape‑and‑reel and bulk‑case packaging dimensions, and surface‑mounting guidelines for reliable soldering and handling of the MLCCs.
| Flexure guarantee | 5 mm |
|---|---|
| Temperature‑cycle guarantee | 3000 cycles |
| Dielectric | X7R |
| Voltage ratings | 6.3 V, 10 V, 16 V, 25 V, 50 V, 100 V |
| Package styles | 0605, 0805, 1206, 1210, 1812 |
| Reel sizes | 7" reel 2 000‑15 000 pcs, 13" reel 5 000‑50 000 pcs |
The soft termination guarantees a minimum flexure of 5 mm without internal cracks.
It is qualified for 3000 temperature cycles, well above the industry standard of 1000 cycles.
The capacitor uses an X7R dielectric.
