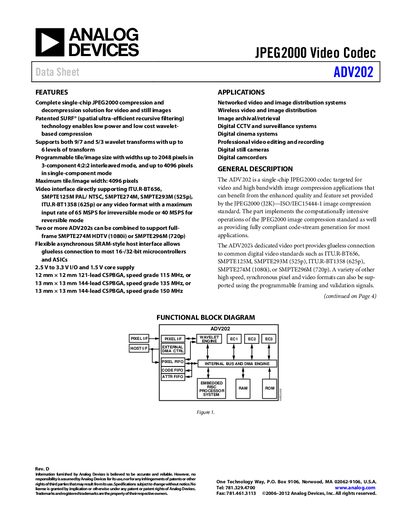

The ADV202 is a single-chip JPEG2000 video codec with patented SURF® (spatial ultra-efficient recursive filtering) technology, enabling low power and low cost wavelet-based compression.
The ADV202 provides a complete JPEG2000 compression and decompression solution, supporting both 9/7 and 5/3 wavelet transforms, up to 4096‑pixel tile width, and a variety of video interfaces such as ITU‑R‑BT656 and SMPTE standards. It includes a programmable host interface, low‑power supply options, and can be combined for full‑frame HDTV processing.
The document lists electrical specifications, pin assignments, timing diagrams, and ordering guide details for the 121‑lead and 144‑lead CSP‑BGA packages, making it a comprehensive reference for designers integrating the codec into their systems.
| Core supply voltage (VDD) min | 1.425 V |
|---|---|
| Core supply voltage (VDD) max | 1.575 V |
| I/O supply voltage (VIO) range | 2.375 V – 3.63 V |
| Maximum tile/image width | 4096 pixels |
| Operating temperature range | -40 °C to +85 °C |
| Package type (115 MHz grade) | 121‑lead CSP‑BGA |
| Package type (150 MHz grade) | 144‑lead CSP‑BGA |
It supports ITU‑R‑BT656, SMPTE125M, SMPTE274M (1080i), SMPTE296M (720p), SMPTE293M (525p), and ITU‑R‑BT1358 (625p) as well as other high‑speed video formats.
The core VDD operates from 1.425 V to 1.575 V, the I/O VDD from 2.375 V to 3.63 V, and the PLL VDD from 1.425 V to 1.575 V.
The maximum tile or image width supported is 4096 pixels.
It operates from –40 °C to +85 °C in free air.
