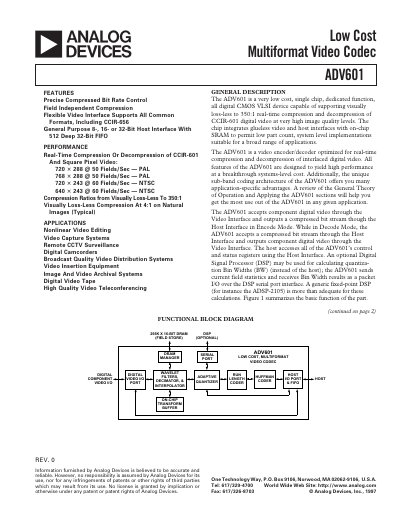

ADV601 is a low-cost multi-format video codec that features precise compressed bit rate control, field-independent compression, flexible video interface, supports all common formats including CCIR-656, general purpose 8-, 16- or 32-bit host interface with 512 deep 32-bit FIFO.
The ADV601 is a single‑chip, all‑digital CMOS VLSI video codec designed for real‑time compression and decompression of CCIR‑601 and CCIR‑656 digital video. It integrates video I/O, host I/O, DRAM manager, DSP interface and on‑chip transform buffer, enabling compact system designs.
Key features include wavelet‑based filtering, adaptive quantization, run‑length and Huffman coding, a 512‑deep 32‑bit FIFO, and optional DSP support for bin‑width calculations. The device supports multiple video formats, offers compression ratios from visually loss‑less to 350:1, and operates at a maximum pixel rate of 14.75 MHz.
| Maximum active field size | 768 × 288 |
|---|---|
| Maximum pixel rate | 14.75 MHz |
| On‑chip DRAM | 256 K × 16‑bit |
| Host FIFO depth | 512 positions, 32‑bit wide |
| Supported video formats | CCIR‑601, CCIR‑656 and other common formats |
| Compression ratio range | Visually loss‑less to 350:1 |
It supports CCIR‑601, CCIR‑656 and other common digital video formats.
The codec can compress video up to a ratio of 350:1.
The host FIFO is 32 bits wide and 512 positions deep.
The device operates at a maximum pixel rate of 14.75 MHz.
