The document describes a 50W LDMOS power transistor for base station applications in the frequency range of 3400 MHz to 3800 MHz. The product features a channel bandwidth of 1.23 MHz, a PAR of 9.7 dB, 23% drain efficiency, and excellent thermal stability and ruggedness.

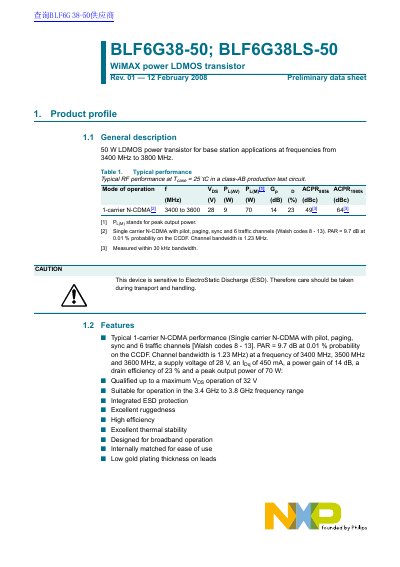

This document is a preliminary datasheet for the NXP BLF6G38-50 and BLF6G38LS-50, which are 50 W LDMOS power transistors designed for base station applications in the WiMAX frequency range of 3400 MHz to 3800 MHz. The devices feature typical performance characteristics including a peak output power of 70 W and a power gain of 14 dB at 28 V supply voltage.
| Frequency range | 3400 MHz to 3800 MHz |
|---|---|
| Peak output power (typical) | 70 W |
| Power gain (typical) | 14 dB |
| Drain efficiency (typical) | 23 % |
| Supply voltage (typical) | 28 V |
| Package type (BLF6G38-50) | SOT502A |
The transistors are designed for frequencies from 3400 MHz to 3800 MHz.
The device provides a typical peak output power of 70 W at 28 V supply.
Yes, the product is compliant to Directive 2002/95/EC regarding Restriction of Hazardous Substances.
