ADAV803 is an audio codec designed specifically for recordable DVD, supporting 48kHz/96kHz sampling rate, 102dB dynamic range, single-ended input, automatic level control.

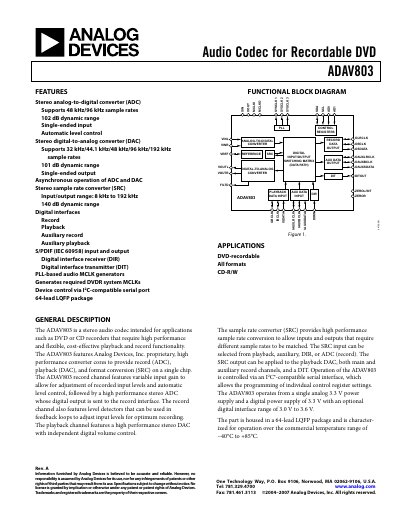

The ADAV803 is a stereo audio codec intended for DVD and CD recorders, providing high‑performance ADC, DAC, and sample‑rate conversion on a single chip. It operates from a single 3.3 V analog supply and includes I²C‑compatible control, S/PDIF interfaces, and a PLL for clock generation.
The document contains functional block diagrams, detailed pin descriptions, electrical specifications, timing data, and layout recommendations to help designers achieve optimal performance in mixed‑signal PCB designs.
| ADC Sample Rate | 48 kHz / 96 kHz |
|---|---|
| ADC Dynamic Range | 102 dB |
| ADC Resolution | 24 Bits |
| Analog Supply Voltage (AVDD) | 3.0 V – 3.6 V |
| Package | 64‑lead LQFP |
| Operating Temperature Range | -40 °C to +85 °C |
The analog supply (AVDD) can be between 3.0 V and 3.6 V.
The ADC offers 24‑bit resolution.
Control is performed via an I²C‑compatible serial interface.
The DAC provides a 101 dB dynamic range.
